Parallel Lines & Transversals SAT Cheat Sheet 2025 – Angle Pair Matrix
Test Preparation
Jun 30, 2025
Master angle relationships in geometry with this comprehensive guide on parallel lines and transversals, featuring tips, matrix, and problem-solving strategies.

Understanding angle relationships in parallel lines and transversals is key to solving geometry problems quickly. Here's what you need to know:
Corresponding angles, alternate interior angles, and alternate exterior angles are equal when lines are parallel.
Same-side interior angles add up to 180° (supplementary).
Vertical angles are always equal, no matter what.
When a transversal intersects parallel lines, it creates 8 angles with predictable relationships. Use these patterns to set up equations and solve for unknown angles efficiently.
Quick Tips:
Identify angle types using shapes like "Z" (alternate angles) or "F" (corresponding angles).
Use the Angle Pair Matrix as a reference to confirm relationships.
Follow a simple 4-step process: spot the lines, label angles, write equations, and double-check your work.
This cheat sheet simplifies angle relationships and provides a step-by-step guide to solving problems, especially for tests like the SAT.
Transversals & Parallel Lines - lots of congruent and supplementary angles
Types of Angle Pairs and Their Properties

Getting familiar with these groups of angle pairs helps you understand the relationships between angles when a transversal crosses two parallel lines. These relationships simplify solving geometry problems by revealing predictable patterns.
Corresponding Angles
Corresponding angles appear when a transversal cuts through two lines, forming angles in the same relative position at each intersection. Think of them as "matching" angles on either side of the transversal. When the lines are parallel, corresponding angles are always equal. For example, if one angle measures 65°, its corresponding angle will also measure 65°. This is guaranteed by the Corresponding Angles Postulate, which states that corresponding angles are congruent when a transversal intersects parallel lines. Here's a handy tip: once you know one angle in a parallel-line setup, you can figure out all the others by using the relationships between corresponding and supplementary angles.
Alternate Interior and Alternate Exterior Angles
Alternate angles also follow consistent patterns when parallel lines are involved. Alternate interior angles sit on opposite sides of the transversal but are found between the two parallel lines. Alternate exterior angles, on the other hand, are located outside the parallel lines, still on opposite sides of the transversal. When the lines are parallel, both alternate interior and alternate exterior angles are congruent. The term "alternate" highlights their mirrored positions across the transversal. For instance, if an alternate interior angle measures 110°, its counterpart will also measure 110°.
Same-Side Interior and Same-Side Exterior Angles
When a transversal crosses parallel lines, same-side interior angles (also called consecutive or co-interior angles) and same-side exterior angles follow another predictable rule - they’re supplementary. This means their measures add up to 180°. Same-side interior angles are located on the same side of the transversal and between the two parallel lines. Same-side exterior angles are similarly positioned but outside the parallel lines. For example, if one same-side interior angle measures 75°, the other will be 105° (since 180° - 75° = 105°). Keep in mind, while alternate interior angles are equal, same-side interior angles are supplementary.
Vertical Angles
Vertical angles form when two lines intersect, creating pairs of opposite angles that resemble an "X" shape. These angles are always congruent, regardless of whether the lines are parallel. At each intersection, vertical angles provide a reliable shortcut for solving problems because their equality is a consistent property. For example, if one vertical angle measures 45°, the opposite angle will also measure 45°.
Angle Pair Reference Matrix
This matrix pulls together essential angle relationships to streamline your approach to solving parallel line problems. With this quick-reference tool, you can save time and improve accuracy in identifying and working with angle pairs.
How to Use the Reference Matrix
Think of this matrix as your cheat sheet for tackling parallel line problems. Start by spotting the type of angle pair shown in your diagram. Then, consult the matrix to confirm their relationship. For example, on the SAT, knowing that corresponding angles and alternate interior angles are equal, while same-side interior angles are supplementary, can significantly speed up your problem-solving process.
Focusing on the angle relationships that are tested most often can help you study smarter, not harder. Use this matrix to guide your setup when writing equations for unknown angles.
Matrix Layout and Information
The matrix organizes angle pair relationships into four clear columns:
Angle Pair Type: Names the specific relationship.
Position Description: Describes where the angles are located relative to the parallel lines and the transversal.
Relationship: Specifies whether the angles are equal or supplementary.
Key Properties: Includes extra details to aid in solving problems.
Angle Pair Type | Position Description | Relationship | Key Properties |
---|---|---|---|
Corresponding Angles | Identical positions at each intersection | Equal | Always congruent when lines are parallel; useful for finding other angles |
Alternate Interior Angles | Opposite sides of the transversal, between parallel lines | Equal | Mirror each other across the transversal |
Same-Side Interior Angles | Same side of the transversal, between parallel lines | Supplementary (180°) | Also called consecutive or co-interior angles |
Vertical Angles | Opposite angles at the intersection | Equal | Always congruent, regardless of whether lines are parallel |
This matrix is an excellent tool for committing the key relationships to memory. For instance, vertical angles are always equal, corresponding angles are equal, alternate interior angles are equal, and same-side interior angles add up to 180°. By organizing these relationships visually, you can quickly identify angle pairs and set up equations to solve for unknown values.
Use this matrix during practice or tests to sharpen your skills. The more you link the visual patterns in diagrams to the relationships outlined here, the faster and more accurate you'll become at solving angle-related problems.
Step-by-Step Process for Solving "Find x" Problems

Tackling "find x" problems involving parallel lines and transversals becomes much easier when you follow a clear, systematic approach. These types of questions are common on the SAT, so having a reliable method can save you time and boost your accuracy.
Step 1: Spot the Parallel Lines and Transversal
Start by identifying the key elements in the diagram. Look for the parallel lines, which are often marked with small arrow symbols, and locate the transversal - a line that crosses at least two other lines. When a transversal intersects parallel lines, it creates eight angles. If the problem doesn’t explicitly state the lines are parallel, assume they are, as this assumption is crucial for solving the problem. Once you've identified these lines, label the angles in the diagram.
Step 2: Label and Organize the Angles
Carefully label all the angles, including any measurements or expressions provided in the problem. If an angle is expressed as something like "3x + 20°", write that expression next to the corresponding angle. Then, figure out how the angles are related - are they corresponding, alternate interior, same-side, or vertical angles? Use symbols, colors, or other markings to visually group related angles. This step helps you stay organized and reduces the chance of errors when setting up equations.
Step 3: Write Equations and Solve for x
Now, set up algebraic equations based on the relationships between the angles. If the angles are congruent (such as corresponding or alternate interior angles), their expressions will be equal. If the angles are supplementary (like same-side interior angles), their expressions should add up to 180°.
Here’s an example: Suppose two parallel lines, A and B, are cut by a transversal. One angle is labeled as 3x + 20°, and it’s congruent to an alternate exterior angle measuring 140°. You would write the equation:
3x + 20° = 140°
Subtract 20°: 3x = 120°
Divide by 3: x = 40°
Use basic algebra - addition, subtraction, multiplication, division - to solve for x. Keep your work neat to avoid mistakes.
Step 4: Double-Check Your Work
Once you’ve found the value of x, plug it back into the original angle expressions to make sure everything checks out. For example, if x = 40°, substitute it into 3x + 20° to confirm it equals 140°. This step ensures that the angle relationships - whether congruent or supplementary - are correct.
Finally, review the diagram one more time to confirm that all your calculated angles make sense in the context of the problem. This last check is your safety net to catch any errors before moving on.
SAT Problem-Solving Tips
When you're racing against the clock on the SAT, having a few quick strategies for tackling parallel lines and transversal problems can make all the difference.
Recognize Common Angle Patterns
Instead of memorizing a long list of rules, focus on spotting familiar angle patterns. Think of these patterns as shapes you can identify at a glance.
"Z angles": These are alternate interior angles that form a Z-like shape across the parallel lines.
"F angles": Corresponding angles that create an F-like pattern.
"C angles": Co-interior (same-side interior) angles that form a C shape and always add up to 180°.
Here’s a helpful shortcut: when a transversal cuts through parallel lines, all acute angles are equal, and all obtuse angles are equal. For example, if one acute angle measures 65°, then all acute angles in the diagram are 65°. Correspondingly, all obtuse angles will be 115° (since 180° - 65° = 115°). Knowing this can save you from recalculating each angle individually.
Set Up Equations Fast
Speed is your best friend here, and it starts with recognizing when angles are equal or supplementary. Always mark the given information directly on the diagram to avoid confusion.
For instance, if one angle is labeled as 3x + 20° and its corresponding angle is 140°, write down the equation: 3x + 20° = 140°. Trust the patterns you've identified to set up equations quickly and accurately.
If time is running short or the algebra looks complicated, try using the answer choices to your advantage. For example, if the choices are 20°, 30°, 40°, and 50°, test one of the middle options first. This approach is especially useful when you've correctly identified the relationships but want to skip lengthy calculations.
Keep in mind that many line and angle problems involve multiple steps. You might need to solve for one angle first, then use that result to find the value of x. Stay organized and work step-by-step.

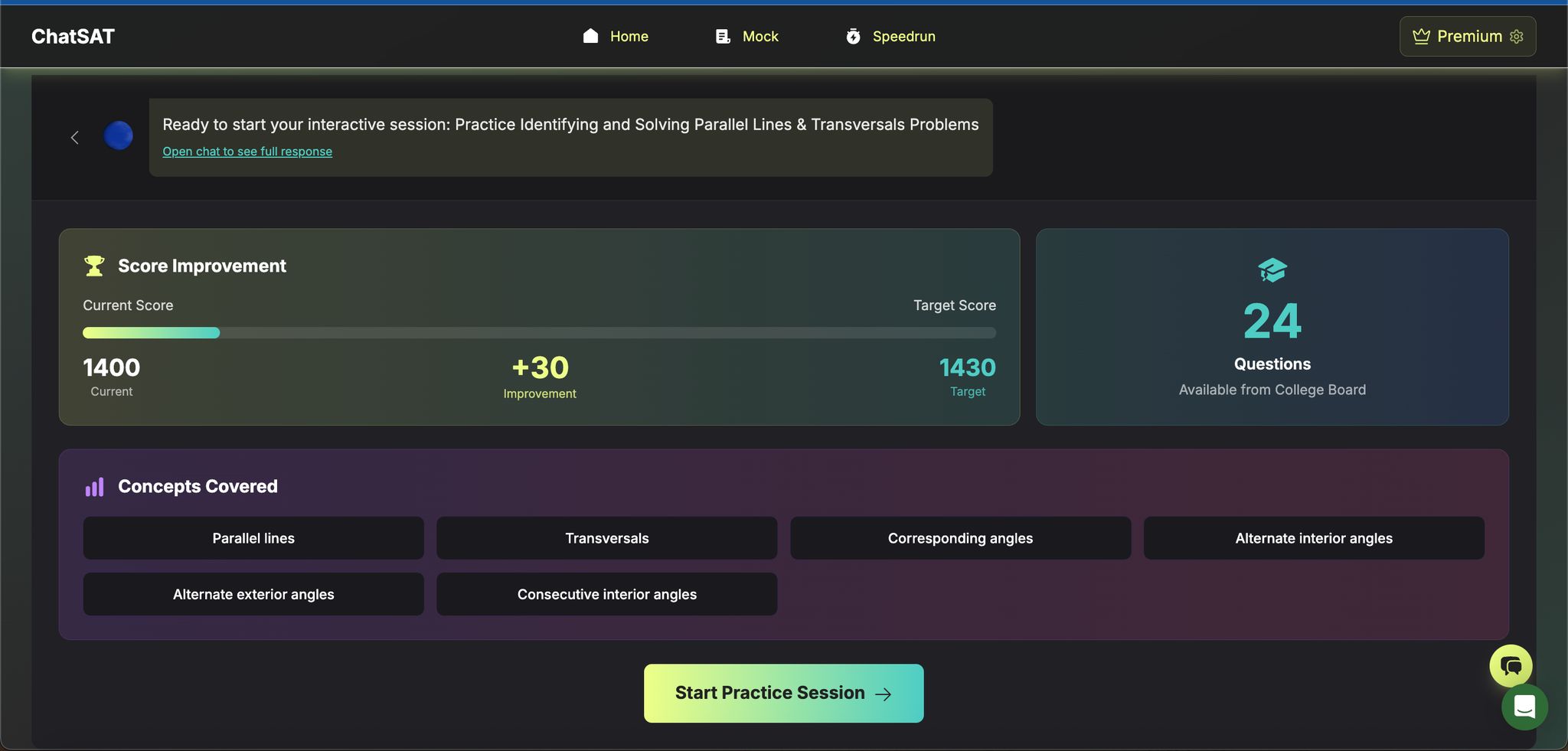

Use ChatSAT for Practice

ChatSAT is a powerful tool for sharpening your angle-pattern recognition skills. Its adaptive drills and AI Study Director can help you focus on areas where you need the most improvement.

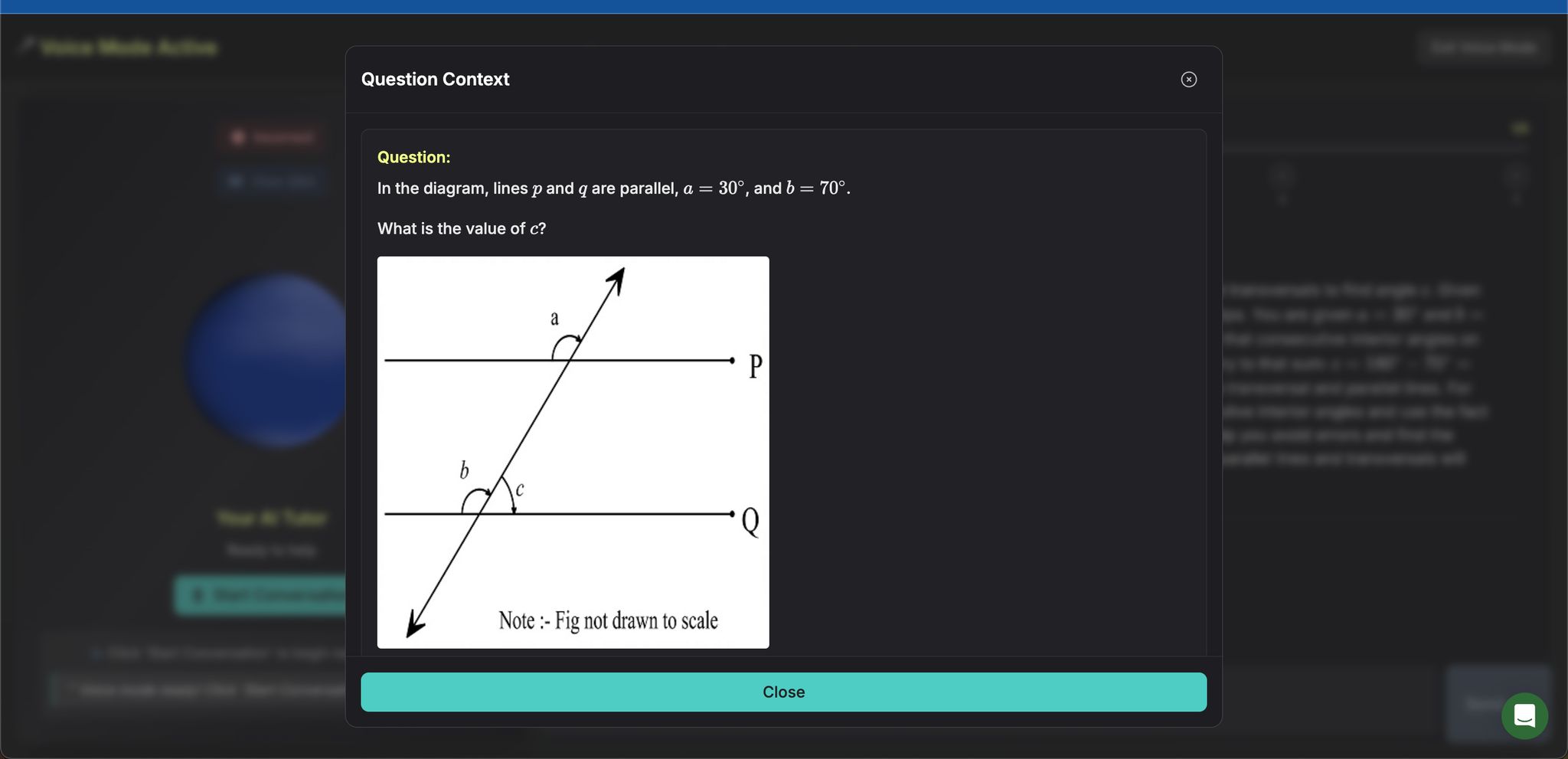

One standout feature is the "Ask-Why" tool, which provides instant explanations for tricky problems. If you're unsure whether two angles are corresponding, alternate interior, or same-side, this feature clears up confusion in real time, so you don’t lose momentum during practice.
Another helpful tool is the Urgency Detector, which tracks how often concepts like parallel lines and transversals appear on recent SATs and adjusts your practice sessions accordingly. As your test date approaches, it prioritizes high-frequency geometry topics while scaling back on areas you've already mastered.
Finally, ChatSAT’s mixed-topic drills replicate the unpredictability of the SAT. You'll practice switching between problems involving parallel lines, circles, triangles, and other geometric concepts. This kind of variety trains you to recognize patterns quickly, ensuring you're ready for anything on test day.
Summary
Understanding five key angle pair relationships is crucial: corresponding angles, alternate interior angles, alternate exterior angles, same-side interior angles (supplementary), and vertical angles. Here's the breakdown: when parallel lines are intersected by a transversal, corresponding angles, alternate interior angles, and alternate exterior angles are equal in measure. Meanwhile, same-side interior angles are supplementary, meaning their measures add up to 180°. Vertical angles? They're always equal, no exceptions. This framework forms the backbone of the methods discussed earlier.
To simplify your approach, the angle pair reference matrix is a handy tool for quick lookups. Instead of memorizing complex rules, focus on spotting visual patterns like the "Z" shape for alternate angles or the "F" shape for corresponding angles. These patterns make it easier to recognize relationships and set up equations quickly.
A straightforward four-step process can help minimize errors: identify the lines, label the angles, set up equations, and verify your answers. This method aligns with the reference matrix and the step-by-step guide, ensuring accuracy.
To solidify these concepts, ChatSAT’s adaptive system is designed to reinforce learning through spaced repetition and active recall. With tools like the Ask-Why feature, which explains angle relationships on the spot, and the Urgency Detector that highlights essential geometry topics, you'll stay focused on what matters most. Plus, timed practice sessions sharpen your ability to recognize patterns quickly and efficiently.
FAQs
How does the Angle Pair Matrix make solving geometry problems with parallel lines and transversals easier?
The Angle Pair Matrix is a handy tool for tackling geometry problems. It lays out essential angle relationships - like corresponding angles, alternate interior angles, and same-side angles - in a clear, visual format. This setup makes it easier to spot connections between angles, helping you quickly set up equations and solve for unknowns, such as the value of x.
With this matrix, you can cut down on unnecessary guesswork and concentrate on applying the correct angle rules. It’s especially useful for streamlining the process of solving transversal problems, saving both time and effort.
What are common mistakes to watch out for when identifying angle relationships with parallel lines and a transversal?
One frequent error is mixing up the positions of angles, such as corresponding, alternate interior, or same-side interior angles. These angles have specific placements relative to the parallel lines and the transversal, so it’s crucial to carefully examine their locations in the diagram.
Another common slip-up is assuming that all angles are either equal or supplementary without properly analyzing their relationships. For instance, while some angles are congruent, others are supplementary based on their placement. Misinterpreting these relationships can easily lead to incorrect conclusions.
To steer clear of these mistakes, take the time to correctly identify angle pairs and double-check their relationships according to their positions in the figure.
How can I use shapes like 'Z', 'F', and 'C' to quickly identify angle relationships on the SAT?
Recognizing visual patterns such as 'Z', 'F', and 'C' can be a game-changer when tackling geometry problems. These shapes serve as shortcuts to quickly identify specific angle relationships:
The 'Z' shape points out alternate interior angles.
The 'F' shape highlights corresponding angles.
The 'C' shape indicates same-side interior angles.
By practicing how to spot these shapes in diagrams, you can identify angle pairs much faster. This approach not only makes problem-solving more straightforward but also helps you save precious time on the SAT.
